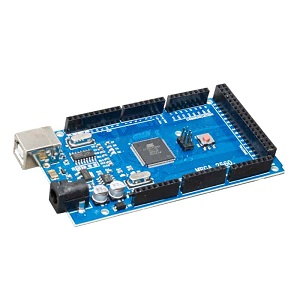

The Arduino Mega 2560 is a powerful and versatile microcontroller board based on the ATmega2560 chip, designed to meet the needs of more demanding projects. Whether you're working with complex sensors, multiple devices, or need more processing power, the Mega 2560 provides an excellent solution.
Key Features:
54 Digital I/O Pins: Including 15 PWM outputs to control motors, lights, and other devices with precision.
16 Analog Inputs: Ideal for reading sensors, sensors, and other analog data sources.
4 UARTs (Hardware Serial Ports): Enables multiple serial devices, such as GPS modules or Bluetooth devices, to run simultaneously without conflicts.
16 MHz Crystal Oscillator: Ensures consistent timing and performance for real-time applications.
USB Connection: Easily interface with a computer for programming and communication.
Power Options: Power the Mega 2560 via a USB connection, an AC-to-DC adapter, or a battery—flexibility for both desktop and mobile setups.
ICSP Header: For direct programming of the microcontroller, making it easier to burn new firmware when necessary.
Reset Button: For easy reset and troubleshooting.
Compatible with Most Shields: The Mega 2560 is fully compatible with most shields designed for the Arduino Uno, allowing you to use a wide variety of existing expansion boards for added functionality.
With the ATmega2560 microcontroller at its core, the Arduino Mega 2560 offers a wealth of I/O options, making it ideal for complex projects that require a lot of connections. The board features:
256 KB Flash Memory: With 8 KB used by the bootloader, this large amount of memory allows you to store more code for extensive programs.
8 KB SRAM: Provides the necessary space for variables and program execution.
4 KB EEPROM: Store data that needs to persist even when the board is powered off.
Clock Speed: 16 MHz, ensuring fast processing speeds for your most demanding applications.
The Mega 2560 is compatible with the Arduino IDE, making it easy to program using familiar, beginner-friendly tools. Whether you're a seasoned engineer or just starting out, the Arduino Mega 2560 is a great choice for projects involving robotics, home automation, wearables, IoT, and more.
Key Specifications:
Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage: 6-12V (or USB 5V)
Output Voltages: 3.3V and 5V
Digital I/O Pins: 54 (15 with PWM)
Analog Input Pins: 16
DC Current per I/O Pin: 20 mA
DC Current for 3.3V Pin: 800 mA max.
DC Current for 5V Pin: 800 mA max.
Flash Memory: 256 KB (8 KB reserved for bootloader)
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
LED_BUILTIN: Pin 13
Dimensions: 101.5 mm x 53.3 mm
Weight: 37 g (without headers)
The Arduino Mega 2560 is ready to support your most ambitious projects—whether you’re controlling a complex robot, building a home automation system, or experimenting with sensors and devices. Start building today with the Arduino Mega 2560, the go-to board for advanced and expandable Arduino proje
