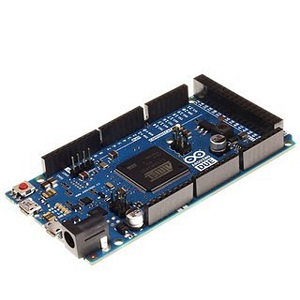

Arduino Due: Unleash the Power of 32-bit Performance
The Arduino Due is a high-performance microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU, marking it as the first Arduino board powered by a 32-bit ARM core microcontroller. This makes the Due ideal for advanced projects requiring more processing power, speed, and precision.
Whether you're working on sophisticated robotics, real-time data processing, or high-speed communication, the Arduino Due delivers the power and flexibility you need to push your creativity and technical skills to new heights.
Why Choose Arduino Due?
32-bit Processing Power: Powered by the ARM Cortex-M3 processor running at 84 MHz, the Due offers significantly more performance than standard 8-bit Arduino boards. This makes it perfect for applications that require more computation, such as complex calculations, advanced robotics, or high-speed data logging.
Large I/O Capabilities: With 54 digital I/O pins, 12 analog inputs, and 4 UARTs, the Due is equipped to handle a vast array of sensors, actuators, and communication interfaces, providing the flexibility to build even the most complex projects.
High-Speed Communication: Equipped with multiple communication options like SPI, I2C (TWI), and UART, the Due enables fast and reliable communication between various devices, sensors, and other microcontrollers.
Digital-to-Analog Conversion: The board includes 2 DACs (Digital-to-Analog Converters), which allow for smooth output of analog signals, perfect for applications like audio generation or controlling motors with precise speed control.
USB OTG (On-The-Go): This feature allows the board to act as a host or device for USB peripherals, adding versatility to your projects, such as connecting to USB keyboards, mice, or flash drives.
JTAG Support: The JTAG header makes debugging and firmware updates more accessible, providing deeper control over the board's operations.
Easy Connectivity: Just connect the Arduino Due to your computer via micro-USB or power it through an AC-to-DC adapter or a battery to get started.
Important Considerations:
3.3V Logic: Unlike most other Arduino boards, the Arduino Due runs at 3.3V instead of 5V. It's important to note that the maximum voltage the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. Be sure to check voltage levels when using shields or external components.
Key Features:
Microcontroller: Atmel SAM3X8E ARM Cortex-M3
Operating Voltage: 3.3V
Input Voltage: 7-12V (recommended) or USB 5V
Digital I/O Pins: 54 (12 with PWM)
Analog Input Pins: 12
DAC (Digital-to-Analog Converters): 2
UARTs: 4 (hardware serial ports)
SPI and TWI (I2C): Available for fast communication
JTAG Header: For advanced debugging and programming
Clock Speed: 84 MHz
USB OTG: For connecting USB peripherals
Power Jack: For external power supply (7-12V)
Reset Button: To easily restart your program
Erase Button: For erasing the microcontroller's memory
Compatibility:
The Arduino Due is compatible with 3.3V shields that follow the Arduino 1.0 pinout. While most Arduino shields designed for 5V operation won't be directly compatible, there are plenty of 3.3V shields and accessories designed for this powerful board.
Unleash Advanced Projects with the Arduino Due
With its 32-bit processor and large I/O capabilities, the Arduino Due is the perfect choice for professional engineers, advanced hobbyists, and anyone looking to take on complex projects that demand higher performance. Whether you’re developing real-time systems, building sophisticated robots, or processing large amounts of data, the Arduino Due offers the power, speed, and versatility to bring your ideas to life.
Start your advanced project today with the Arduino Due, and experience the next level of microcontroller technology!
