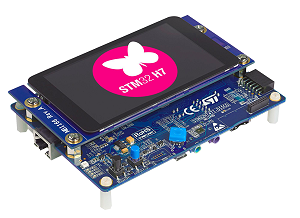

STM32H747I-DISCO: Unlock Ultra-High Performance and Dual-Core Flexibility for Your Next Embedded Project
The STM32H747I-DISCO Discovery Kit is a powerful development platform based on the STM32H747XI microcontroller, designed to give developers access to the next level of performance, flexibility, and efficiency in embedded system development. With its ARM® Cortex®-M7 (480 MHz) and Cortex®-M4 (240 MHz) dual-core architecture, this kit offers unrivaled processing power and multi-core capabilities, enabling complex applications in fields like industrial control, IoT, multimedia, and more. Rich software library with a lot of examples to get you started. Data sheets with schematics.
Key Features:
-
Dual-Core Processing Power: Featuring a dual-core STM32H747XI microcontroller with ARM® Cortex®-M7 running at 480 MHz and Cortex®-M4 running at 240 MHz, this Discovery Kit provides high-performance computing for tasks requiring simultaneous processing on two cores. You can leverage the M7 core for heavy computations and the M4 core for low-power, real-time tasks, making it ideal for complex embedded applications.
-
Massive Memory: With 2MB of Flash memory and 1MB of SRAM, the STM32H747I-DISCO provides ample space to develop applications with large codebases, handle complex data processing, and store extensive resources like multimedia files, large sensor data, or real-time application states.
-
Advanced Graphics & Display Capabilities: Equipped with a 7-inch TFT-LCD capacitive touchscreen (800x480 resolution), this board is perfect for building graphical user interfaces (GUIs) and interactive multimedia applications. The Chrom-ART™ Accelerator integrated into the MCU ensures smooth graphics rendering and fast user interface performance.
-
Rich Connectivity Options: The STM32H747I-DISCO is packed with extensive connectivity features, including USB OTG, Ethernet, CAN, USART, I2C, SPI, and SDIO. These interfaces allow seamless integration with a variety of external devices, making it a versatile platform for a wide range of connected and IoT solutions.
-
Audio and Multimedia: Built for multimedia, the STM32H747I-DISCO features a stereo audio codec, supporting high-quality audio input and output, perfect for audio-centric applications such as smart speakers, portable media players, or any project requiring audio processing.
-
Flexible Expansion: The kit comes with Arduino Uno V3 and ST morpho headers for easy expansion with shields and external peripherals. Whether you need to add sensors, actuators, or additional interfaces, the STM32H747I-DISCO offers the flexibility to customize your design.
-
Integrated Debugging and Development Tools: The kit includes the ST-LINK/V2-1 debugger/programmer, offering full debugging support via Serial Wire Debug (SWD), as well as JTAG. This makes the development process more efficient and streamlined.
-
Comprehensive Software Support: The STM32H747I-DISCO is fully supported by the STM32Cube software suite, which includes STM32CubeMX for configuration and code generation, STM32CubeIDE for development, and a wide range of middleware components for easier integration of peripherals and advanced features. Additionally, STM32Cube Graphics and other middleware libraries make it easy to implement graphical interfaces and multimedia solutions.
Applications:
-
High-Performance Industrial Control: The STM32H747I-DISCO is ideal for applications that require complex control, monitoring, and data processing in industrial environments, such as robotics, automation systems, and real-time control systems.
-
IoT and Connected Systems: With its robust connectivity features and dual-core processing, the STM32H747I-DISCO excels in IoT applications where reliable communication, processing, and integration with external systems are critical. Use it to build smart sensors, gateways, or any connected device.
-
Advanced Multimedia Applications: Whether you're developing touchscreen-based HMIs, smart displays, audio players, or other multimedia systems, the STM32H747I-DISCO’s large touchscreen, audio capabilities, and powerful graphics engine make it an excellent choice.
-
Consumer Electronics: Develop innovative consumer electronics like smart home devices, wearables, or portable media devices, with the ability to integrate real-time control and multimedia features.
-
High-Performance Data Processing: For applications requiring intensive data processing, such as signal processing, image/video processing, or cryptography, the STM32H747I-DISCO’s dual-core architecture and high-speed processing ensure quick and efficient execution.
Why Choose STM32H747I-DISCO?
The STM32H747I-DISCO Discovery Kit is designed for developers who need ultra-high performance, dual-core processing, and advanced multimedia capabilities. Whether you’re building sophisticated industrial systems, connected IoT devices, or interactive multimedia applications, this development kit offers the power, memory, and versatility to bring your ideas to life.
With its dual-core architecture, large touchscreen, rich connectivity options, and multimedia support, the STM32H747I-DISCO is an ideal platform for tackling complex, high-performance embedded systems and accelerating your development process.
Explore the limitless potential of the STM32H747I-DISCO and take your projects to new heights today!
