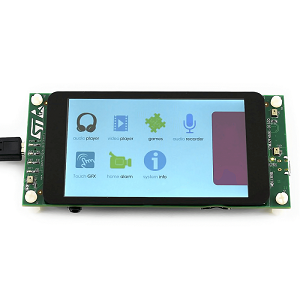

STM32F469 Discovery Kit: Unlock Advanced Embedded Development with a Powerful Graphics-Enabled MCU
Elevate your embedded system projects with the STM32F469 Discovery Kit, a high-performance development platform featuring the STM32F469NIH6 microcontroller based on the ARM® Cortex®-M4 core. Designed for developers seeking to create advanced applications, this kit is perfect for projects that demand strong processing power, high-resolution graphics, multimedia support, and reliable connectivity.
With a rich feature set, intuitive development tools, and the flexibility of the STM32F4 series, the STM32F469 Discovery Kit is ideal for developing and prototyping a wide range of applications, from industrial control and IoT solutions to multimedia, consumer electronics, and human-machine interfaces (HMI). Rich software library with a lot of examples to get you started. Data sheets with schematics.
Key Features:
-
High-Performance STM32F4 MCU: The STM32F469NIH6 is built around the ARM® Cortex®-M4 core, running at 180 MHz, delivering an excellent balance of performance and efficiency. It’s capable of handling demanding tasks such as real-time data processing, complex algorithms, and multimedia applications.
-
Graphics and Multimedia Ready: The STM32F469 Discovery Kit comes equipped with a 4.3-inch TFT-LCD touch display (480x272 resolution), perfect for building interactive graphical user interfaces (GUIs). It also features stereo audio DACs for audio playback, making it an excellent choice for multimedia and HMI projects.
-
Generous Memory: With 2MB of Flash memory and 384KB of SRAM, the STM32F469 Discovery Kit offers ample space for your application code, graphics, audio files, and real-time data handling. The large memory capacity is especially beneficial for applications involving complex graphics and multimedia content.
-
Wide Connectivity Options: The kit is equipped with USB OTG (On-The-Go), Ethernet, CAN, USART, I2C, and SPI interfaces, providing robust connectivity for networking, communication with external sensors, peripherals, and IoT devices.
-
Accelerated Graphics Performance: Built-in Chrom-ART™ Accelerator enhances the graphics performance, allowing smoother and faster rendering of graphical elements on the display, making it ideal for applications with complex user interfaces.
-
Advanced Debugging and Development Tools: The STM32F469 Discovery Kit comes with an ST-LINK/V2-1 programmer/debugger, integrated directly onto the board. It supports the Serial Wire Debug (SWD) interface for debugging, programming, and testing, providing a seamless development experience.
-
Full Software Ecosystem: The STM32F469 Discovery Kit is supported by STM32CubeMX, a graphical configuration tool for configuring peripherals and generating initialization code. It also integrates with STM32CubeIDE, an all-in-one integrated development environment, to accelerate your software development. Additionally, STM32Cube Graphics and Middleware libraries help you develop advanced GUI and multimedia applications quickly.
-
Expandable Platform: With Arduino Uno V3 and ST morpho headers, the board offers extensive expansion possibilities. Easily add sensors, actuators, and external devices to your project and customize it as per your requirements.
Applications:
-
Human-Machine Interfaces (HMIs): Build intuitive, high-performance touchscreen interfaces for industrial machines, home automation systems, or consumer electronics. The large display, touchscreen functionality, and powerful processing capabilities make it ideal for HMI solutions.
-
Multimedia Devices: Leverage the onboard display and audio capabilities to create multimedia systems such as portable media players, video streaming devices, or interactive kiosks.
-
Industrial Control Systems: The STM32F469 Discovery Kit is well-suited for controlling and monitoring industrial processes, featuring precise real-time capabilities, multiple communication interfaces, and strong networking options like Ethernet.
-
IoT Projects: Whether you’re working on a smart device, smart home system, or connected sensor platform, the STM32F469's powerful processing and connectivity options make it an excellent choice for IoT applications.
-
Consumer Electronics: Develop cutting-edge devices like smart appliances, wearables, and portable electronics that require real-time processing, rich graphics, and multimedia handling.
Why Choose the STM32F469 Discovery Kit?
The STM32F469 Discovery Kit is an outstanding choice for embedded system developers looking for high performance, advanced graphics, and versatile connectivity in a single development platform. With its Cortex®-M4 core, generous memory, advanced display capabilities, and wide range of interfaces, this kit opens up endless possibilities for creating sophisticated, graphics-rich, and multimedia-driven applications.
Whether you're developing industrial applications, IoT solutions, multimedia devices, or cutting-edge HMIs, the STM32F469 Discovery Kit provides the tools and power you need to turn your ideas into reality quickly and efficiently.
Start your development today and unlock the potential of the STM32F469 Discovery Kit!
