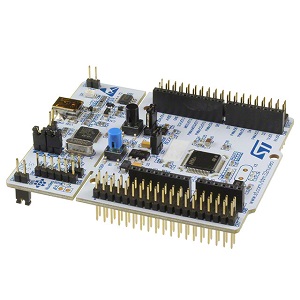

NUCLEO-F446RE: High-Performance STM32 Platform for Powerful Embedded Development
The NUCLEO-F446RE is a versatile and high-performance development board based on the STM32F446RE microcontroller, featuring the ARM® Cortex®-M4 core with FPU (Floating Point Unit) running at up to 180 MHz. Designed for developers, engineers, and hobbyists, this board is perfect for tackling a wide range of embedded applications, including industrial control, IoT, robotics, and real-time data processing. With rich features, easy integration, and robust software support, the NUCLEO-F446RE is your ideal choice for rapid prototyping and embedded system development. Rich software library with a lot of examples to get you started. Data sheets with schematics.
Key Features:
-
High-Performance STM32F4 MCU: The STM32F446RE microcontroller, based on the ARM® Cortex®-M4 core running at up to 180 MHz, delivers excellent performance for tasks requiring real-time processing, complex algorithms, and high-speed computation. Its Floating Point Unit (FPU) and DSP instructions make it ideal for applications involving signal processing, audio, and control systems.
-
Generous Memory: The board features 512KB Flash memory and 128KB SRAM, providing ample space for complex applications and allowing you to develop advanced systems without worrying about memory constraints.
-
Extensive Connectivity Options: The NUCLEO-F446RE offers a wide range of connectivity interfaces, including USB 2.0, CAN, USART, I2C, SPI, and Ethernet (via external PHY). This makes it an ideal platform for building connected systems, IoT devices, or for communication with sensors and external peripherals.
-
Comprehensive Expansion: With Arduino Uno V3 and ST morpho headers, the NUCLEO-F446RE supports a wide variety of expansion boards and shields. Whether you need additional sensors, actuators, displays, or communication modules, this board is ready to integrate seamlessly with external peripherals.
-
Advanced Debugging and Development Tools: The board includes an ST-LINK/V2-1 debugger/programmer integrated directly onto the board, providing easy access to Serial Wire Debug (SWD) and JTAG interfaces. This allows for efficient debugging, firmware updates, and testing without requiring additional hardware.
-
Low-Power Modes: The STM32F446RE offers advanced low-power modes that make it well-suited for battery-powered or energy-efficient applications. You can optimize power consumption in idle states or between processing tasks, making it ideal for portable or remote devices.
-
Full Software Ecosystem: The NUCLEO-F446RE is supported by the STM32CubeMX and STM32CubeIDE development environments. STM32CubeMX provides an easy-to-use graphical interface for peripheral configuration, while STM32CubeIDE offers an integrated development platform to manage your projects, debug, and develop embedded applications. You also have access to a wide range of middleware, libraries, and example projects to speed up development.
-
Real-Time Processing Capabilities: The Cortex®-M4 core’s performance, combined with the FPU and DSP capabilities, makes the NUCLEO-F446RE ideal for real-time data processing tasks such as audio, motor control, signal processing, and sensor fusion.
Applications:
-
Industrial Automation and Control: The NUCLEO-F446RE’s high processing power and rich connectivity options make it ideal for building industrial control systems, PLCs (programmable logic controllers), data loggers, and monitoring systems. Its real-time processing capabilities are perfect for controlling complex machines and systems.
-
IoT and Smart Devices: Build connected IoT devices that require high-speed communication and data processing, such as smart sensors, gateways, or home automation systems. The Ethernet, USB, and CAN interfaces make the NUCLEO-F446RE ideal for networking and communication between devices.
-
Motor Control: With its real-time capabilities and advanced processing power, the NUCLEO-F446RE is well-suited for motor control applications. Use it to drive DC motors, stepper motors, and brushless motors in robotics, automation, and motion control systems.
-
Real-Time Signal Processing: The NUCLEO-F446RE excels in applications requiring fast and precise signal processing, such as audio processing, communications, radar systems, and sensor fusion. The FPU and DSP features enable efficient handling of floating-point calculations and high-speed data streams.
-
Robotics: With its combination of processing power, real-time performance, and connectivity, the NUCLEO-F446RE is a great choice for developing robotic systems, from autonomous vehicles to drones, which require control algorithms, sensor integration, and motor coordination.
Why Choose NUCLEO-F446RE?
The NUCLEO-F446RE development board provides a powerful and versatile platform for developers working on embedded systems. With the STM32F4 microcontroller’s high processing power, advanced peripherals, and extensive connectivity options, it’s a perfect choice for a wide range of applications, from industrial automation to IoT, robotics, and signal processing.
Whether you are prototyping a new system, building a real-time application, or developing an advanced IoT device, the NUCLEO-F446RE offers the performance, flexibility, and scalability to bring your ideas to life quickly and efficiently.
Start your embedded system development today with the NUCLEO-F446RE and unlock the power of the STM32F4 series for your next project!
