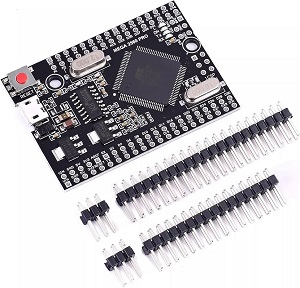

The MEGA2560 PRO Embed is the perfect solution for applications where the standard Arduino MEGA 2560 is too large. With a compact footprint of just 38 x 54 mm, it’s only 38% the size of the traditional MEGA 2560, while retaining all the powerful features and connectivity you need.
In addition to its small size, the MEGA2560 PRO Embed offers superior voltage regulation. It can provide up to 800mA at 3.3V, far surpassing the 150mA provided by the original MEGA 2560. This makes it ideal for powering 3.3V devices such as sensors, displays, and more.
Equipped with the ATmega2560 microcontroller, the MEGA2560 PRO Embed offers:
54 digital I/O pins, with 15 supporting PWM output
16 analog inputs
4 UARTs (hardware serial ports)
Additional features include:
USB-TTL bridge (CH340)
Onboard voltage regulators for 3.3V and 5V
Serial connection LEDs (RX/TX), Power, and D13
ICSP programming header, USB port, and reset button
Powering the MEGA2560 PRO Embed is simple: it can be powered via micro-USB, a stabilized 5V power supply, or any unregulated voltage between 6V and 15V (with a maximum peak of 18V).
Fully Arduino IDE compatible, the MEGA2560 PRO Embed comes with the Arduino Bootloader pre-installed, making it easy to get started right away.

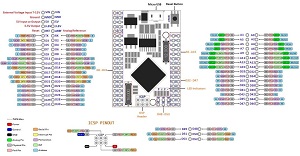

Key Specifications:
Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage: 6-12V (or USB 5V)
Output Voltages: 3.3V and 5V
Digital I/O Pins: 54 (15 with PWM)
Analog Input Pins: 16
DC Current per I/O Pin: 20 mA
DC Current for 3.3V Pin: 800 mA max.
DC Current for 5V Pin: 800 mA max.
Flash Memory: 256 KB (8 KB reserved for bootloader)
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
LED_BUILTIN: Pin 13
Dimensions: 54 mm x 38 mm
Weight: 9 g (without headers)
Get started with your project today with the MEGA2560 PRO Embed—compact, powerful, and versatile!
