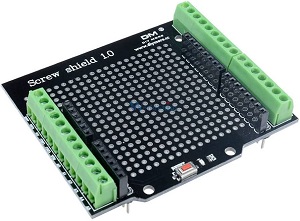

The Arduino Screw Shield 1.0 is an accessory board designed to simplify connections between the Arduino board and external devices, especially when you're working with components like motors, sensors, and other electronic parts that may require more robust connections than standard jumper wires.
Key Features:
-
Screw Terminals: It replaces the traditional jumper wires with screw terminals, which make it easier to securely attach wires without the need for soldering.
-
Stackable: It is designed to fit directly on top of the Arduino board, so it doesn't interfere with the basic functionality of the Arduino. You can stack it on top of an Arduino Uno, for example.
-
Voltage Rails: It has two dedicated voltage rails (typically 5V and GND) available for easier access to power.
-
Direct Access to Pins: The shield breaks out all the digital I/O pins, analog input pins, and power pins to the screw terminal blocks, making it very convenient to connect various components.
-
Convenience: It’s especially useful when you need to make secure, reliable connections for various types of electronic devices that may be subject to vibration or movement, as it ensures a solid electrical connection.
How It Works:
- You insert your Arduino (e.g., Arduino Uno) into the shield's headers.
- Then, use the screw terminals to attach the wires for the devices you want to control (e.g., sensors, motors, LEDs, etc.).
This shield is commonly used in DIY projects, prototyping, and projects that require more permanent or reliable connections than breadboards can provide.
